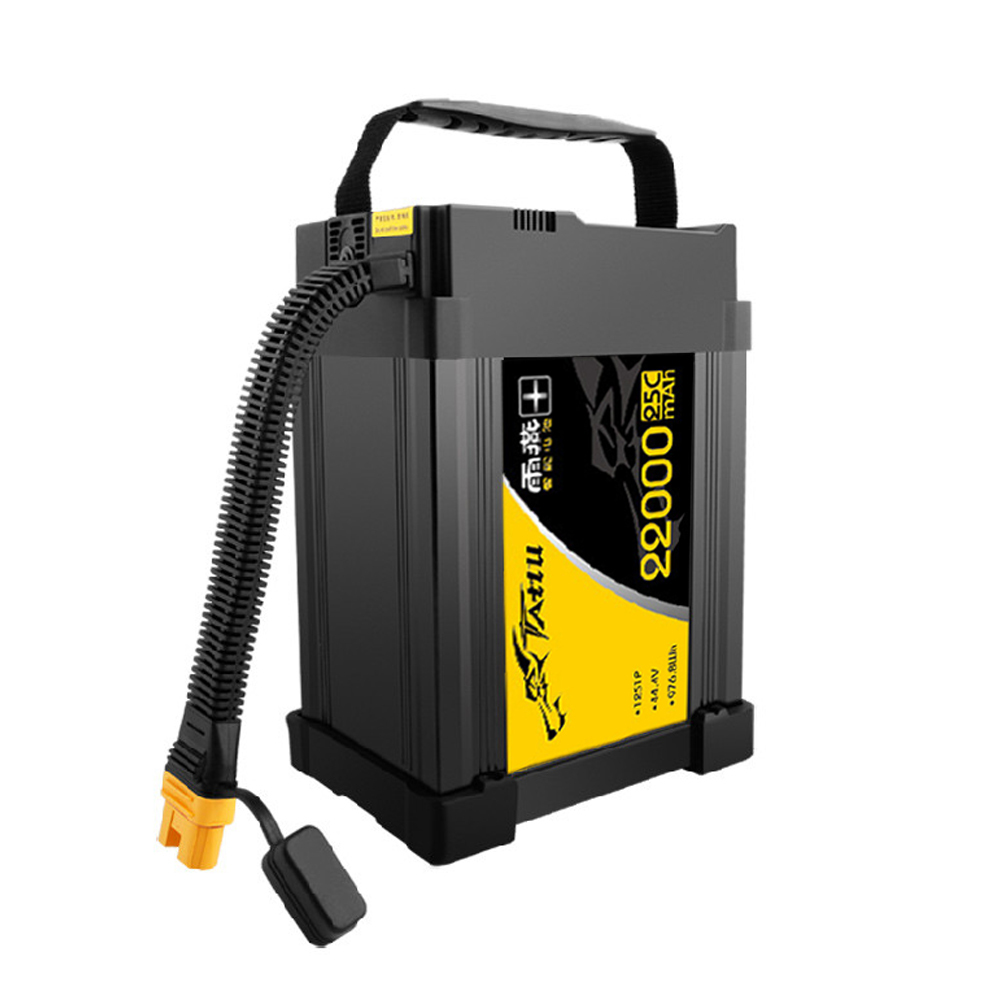

Description:
This series of Tattu 22000mah 12S/14S 25C battery are suitable for agricultural spraying, topographic mapping and electric power detection.It is designed for industrial grade drone and professional applications of drones.
Main Features:
An upgraded battery management system and a new hard shell design provide better external protection to ensure optimal performance and cycle life.
Multifunctional BMS board keeps the battery for optimal health.
The built-in LED lights indicate the current state of the battery to prevent any pre-flight errors.
The battery history will be tracked and recorded on the internal BMS board and can be accessed via a USB connection.
The biggest advantage of the new 12S1P series is its reduced weight and longer flight time compared to the 6S1P series.The lighter payload will also allow your system to attach attachments and attachments.All these features make the TATTU smart battery more efficient and reliable, and can meet various requirements of different applications.
Specification:
22000mah 12S 25C:
Combination: 12 S, 1 P (12 strings together)
Nominal capacity: 22000mAh @ 0.2C Discharge
Minimum capacity: 21500mAh @ 0.2C Discharge
Nominal voltage: 44.4V
Resistance: Ω 12 m or less
Standard charging: 4.5A CC (constant current) charging to 50.4V, then CV (constant voltage 50.4V) charging until charging current ≤ 0.05c
Rapid charging: Continuous current: 30A Continuous voltage: 50.4V Cut-off current: 0.05c
Charging time: Standard charging time: 7.5 hours (reference value), rapid charging time: 1.0 hours (reference value)
Maximum discharge continuous current: continuous current 100A cut-off voltage: 42.6V
(If not specified, the battery charge and discharge interval is 30 minutes.)
Charging parameters: Maximum charging voltage/current 50.4V/30.0A (charger control) Working temperature (charging) 0℃~+45℃
Discharge parameters: sustainable working current 100A, peak current 150A, working temperature (discharge) +10℃~+60℃
22000 mah 14 s 25 c:
Combination: 14 S 1 P (14 strings together)
Nominal capacity: 22000mAh @ 0.2C Discharge
Minimum capacity: 21500mAh @ 0.2C Discharge
Nominal voltage: 51.8V
Resistance: Ω 18 m or less
Standard charging: 0.2c CC (constant current) charging to 58.8V, then CV (constant voltage 58.8V) charging until charging current ≤ 0.05c
Rapid charging: Continuous current: 30A Continuous voltage: 58.8V Cut-off current: 0.05c
Charging time: Standard charging time: 7.5 hours (reference value), rapid charging time: 1.0 hours (reference value)
Maximum discharge continuous current: continuous current 100A cut-off voltage: 47.6V
(If not specified, the battery charge and discharge interval is 30 minutes.)
Charging parameters: Maximum charging voltage/current 50V/30.0A (charger control) Working temperature (charging) 0℃~+45℃
Discharge parameters: sustainable working current 100A, peak current 150A, working temperature (discharge) +10℃~+60℃
Package Size: 12.6 * 18.2 * 24.5 cm
Package Weight: 22000mah 12S 25C: 6.9kg
22000 mah 14 s 25 c: 7.5 kg
Package Included:
1 x Tattu Industrial Drone Battery
