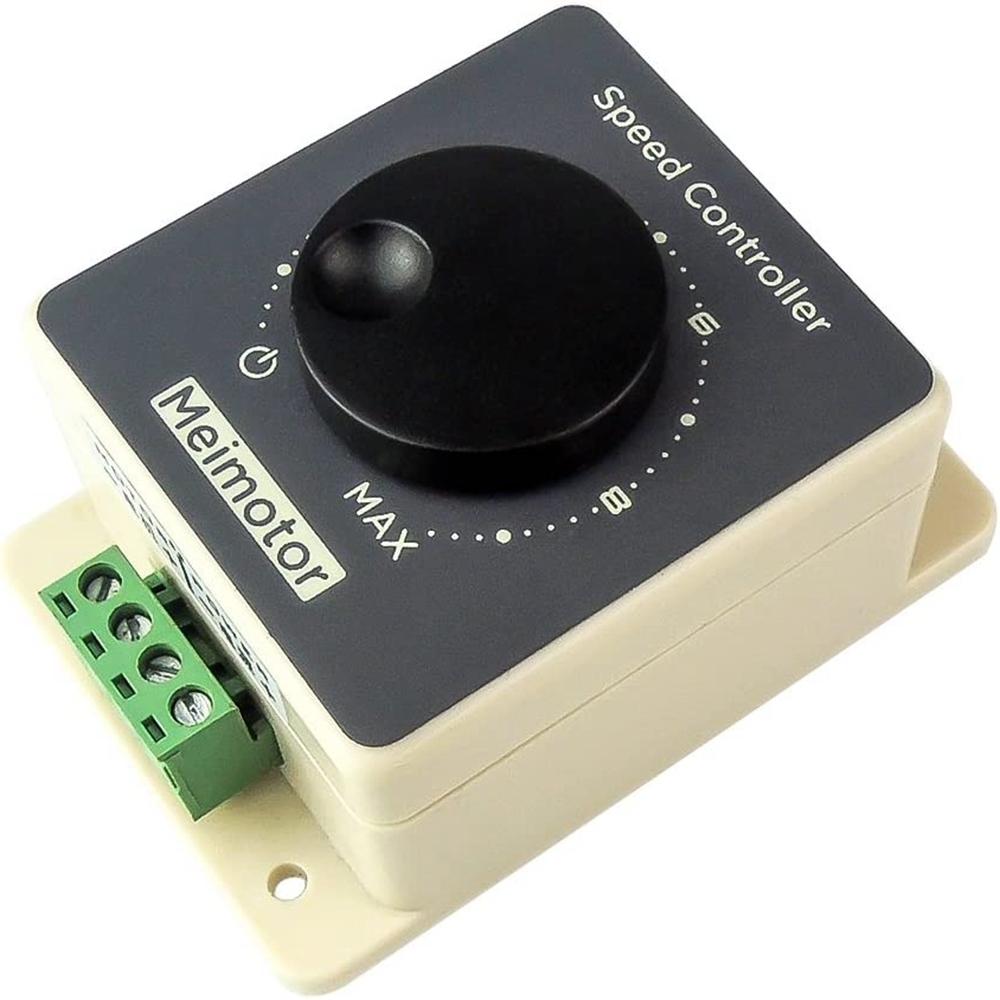

DC10-60V DC Motor Speed Controller Waterproof Adjustment Switch

DC10-60V DC Motor Speed Controller Waterproof Adjustment Switch

Free Shipping on order

US$20.00
{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
Quantity
Add to Wishlist
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Add to Wishlist

Description

Parameter:
Model: CCM96SK
Potentiometer: resistance value B :100K; Opening: 8mm
Input voltage: DC10-60V
The output voltage is about 0-100% of the input voltage
Control power: 12V*10A = 120W, 24V* 10A = 240W...
Rated current: 10A
Maximum current: 20A
Speed adjustment range: 5%-100%.
Size: 88mm*59mm*35mm
PWM frequency: 25kHz
Weight: 94g

Package include:
1x A speed controller

Precautions and instructions for use
1. The input of the DC motor speed controller is DC, and cannot be directly connected to AC.
2. Contact positive and negative poles of the DC power supply cannot be reversed, otherwise, the governor will be damaged.
3. The motor can contact positive or negative when the running direction is inconsistent with the expectation. The direction can be changed by adjusting the line sequence.
4. The potentiometer knob can change the duty cycle of the governor's output, thereby changing the motor speed.

Note:
The positive and negative poles of the power supply of the governor cannot be connected reversely, as the reverse connection will directly damage the governor!
