Product Specifications
Input voltage: DC 10V-30V
Control power: 120W Max
Applicable current
Rated current： 5A
Maximum current：10A
Speed adjustment range: 0%-100%
PWM frequency: 13kHz
Potentiometer: resistance value B10K; wire length 20cm; opening 8mm
Size: 60mm*47mm*28mm
Weight: 47g
Package include：

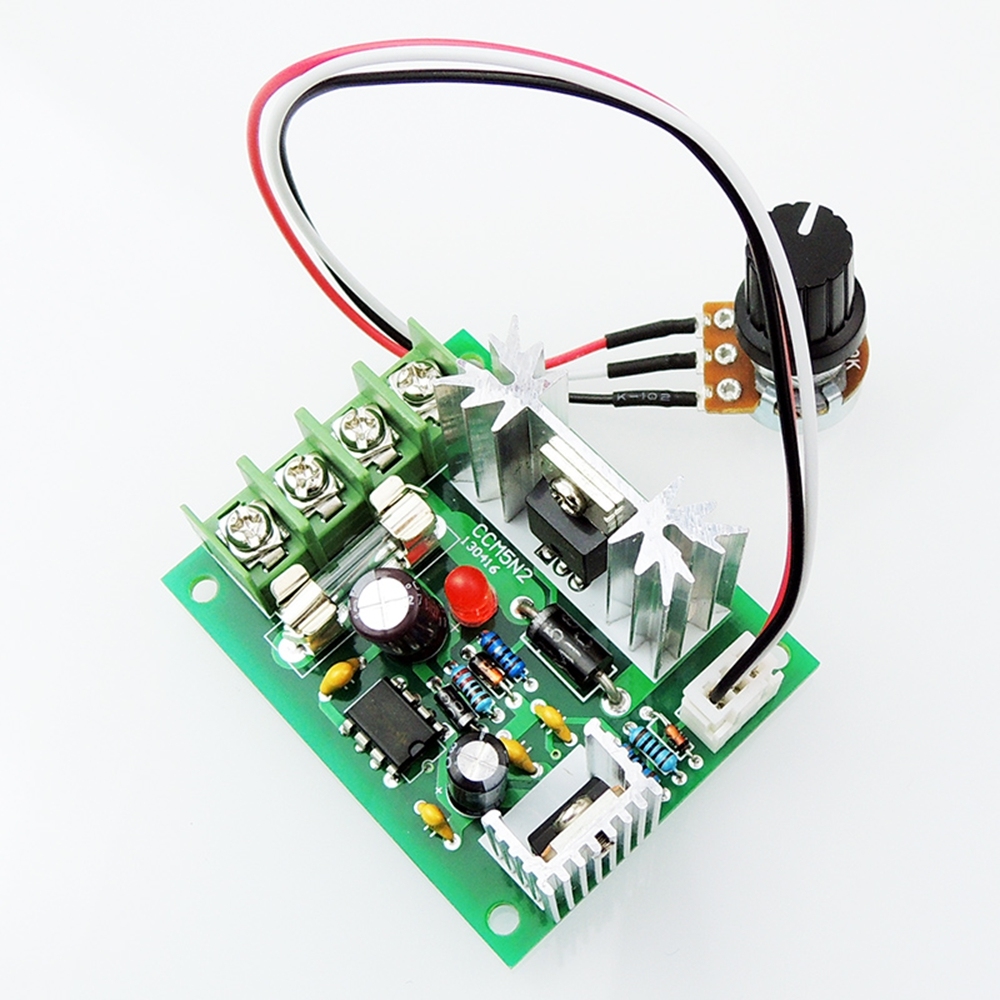

1x A DC 10-40V PWM Unidirectional controller
Note:
If you need to control the forward and reverse, the customer can connect the positive and negative switch.
Equipped with 10A fuse (5mm*20mm size), power supply reverse connection protection, overvoltage and overcurrent protection
