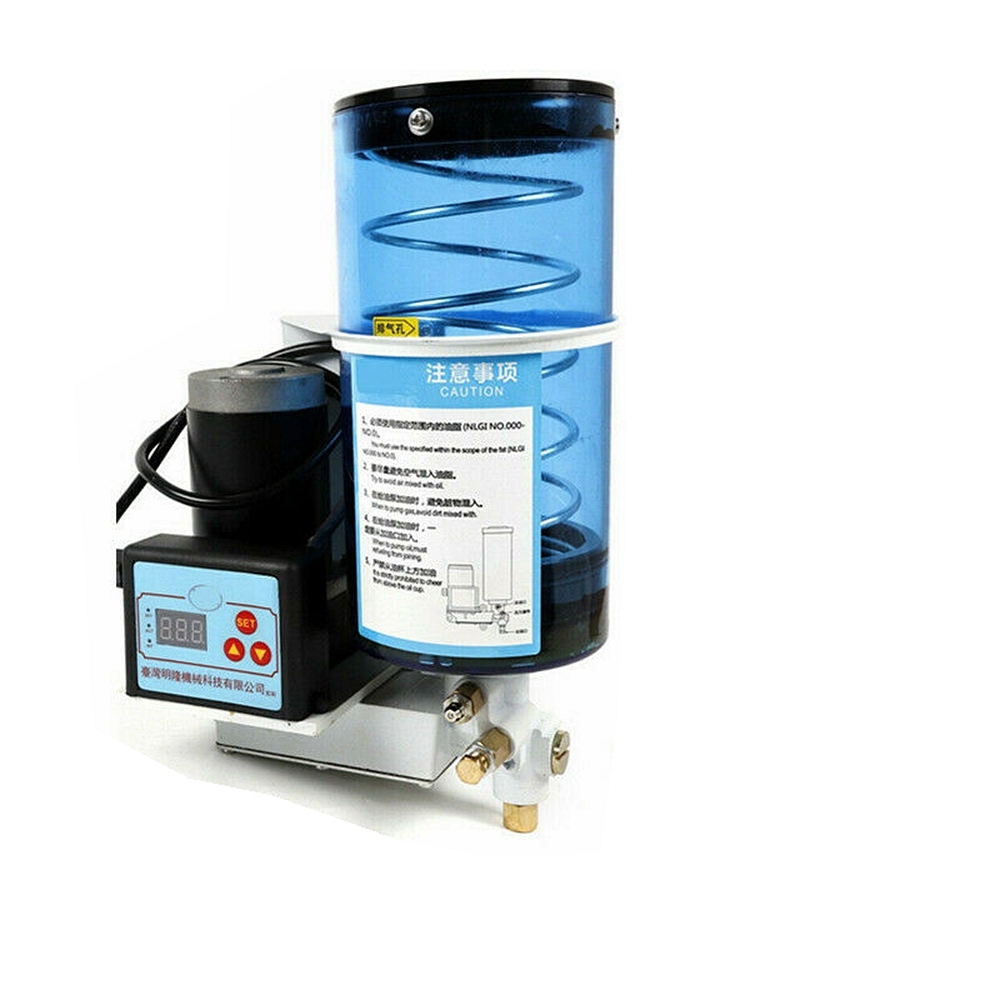

2L Automatic Electric Grease Pump Main Features:
-The thick oil pump has a full-automatic function to control the system and intermittent time.
-This series of oil pump is suitable for 000#-1# lubricating grease, MLDGB series is suitable for 000# -4# e lubricating grease.
-The device has lubrication, intermittent, setting and detection functions. Lubrication and intermittent time can be set by yourself. (The ACT green light is lit for lubrication time, range 1-999S)
-Intermittent time and S/M interchange method. During the lubrication time, when the ACT green light is on, press the SET button and the number will flash 10 times to achieve S/M conversion.
Setup steps:
1. Press the “SET” button for 6 seconds, the number on the screen will flash.
2, press the "up" or "down" triangle icon to select the appropriate time,
3. Press the “SET” button again for 6 seconds, the number on the screen will flash.
5. Press the "Up" or "Down" triangle icon to select the appropriate time.
6. Press “SET” to start working.
When the “ACT” green light flashes, it indicates the lubrication time; when the “INT” red light flashes, it indicates the intermittent time.
Parameter:
Working voltage: 24V
Power: 15W
Capacity: 2L / 2000ml
Rated pressure: 20kgf/cm²
Maximum pressure: 50kgf/cm²
Exhaled volume: 60cc / min
Oil outlet: φ6mm
Applicable oil: 000-1# grease
Package Included:
1 x 2L DC24V （or AC220V）grease pump
